# Apache Hadoop {% hint style="danger" %} The following steps are intended for setting up a Pentaho Lab environment and need to be completed in order to complete the Workshops. Ensure you have downloaded the Workshop--Installation: ```bash cd git clone https://github.com/jporeilly/Workshop--Installation ``` To install git: ```bash sudo apt install git ``` {% endhint %} {% hint style="info" %} **Prerequisites** * Ubuntu 24.04 LTS system (physical or virtual machine) * User account with sudo privileges * Internet connection * Basic familiarity with Linux command line {% endhint %} x {% tabs %} {% tab title="Linux" %} {% hint style="info" %} In pseudo-distributed mode, all Hadoop daemons (NameNode, DataNode, ResourceManager, NodeManager) run on a single machine. This setup is configured to mimic a multi-node cluster, allowing you to test HDFS operations and run MapReduce or YARN applications as if you had a small cluster. It's the ideal starting point for learning Hadoop. {% endhint %} 1. Update system packages. ```bash sudo apt update && sudo apt upgrade -y ``` 2. Hadoop is built on Java so you need a Java Development Kit (JDK) installed. Confirm installation. ```bash java --version ``` 3. Before you begin ensure Docker & Docker Compose have been installed & configured. ```bash docker-compose --version ``` *** **Create Directories** 1. Create directory structure. ``` // Some code ``` 2. Run the docker containers using docker-compose ```bash cd cd ~/Hadoop docker-compose up -d ``` ```bash [+] Running 28/5 ✔ datanode Pulled 32.7s ✔ namenode Pulled 32.6s ✔ nodemanager1 Pulled 32.5s ✔ resourcemanager Pulled 32.3s ✔ historyserver Pulled 32.5s [+] Running 9/9 ✔ Network hadoop_default Creat... 0.5s ✔ Volume "hadoop_hadoop_datanode" Created 0.0s ✔ Volume "hadoop_hadoop_historyserver" Created 0.0s ✔ Volume "hadoop_hadoop_namenode" Created 0.0s ✔ Container datanode Started 3.8s ✔ Container namenode Started 3.9s ✔ Container nodemanager Starte... 3.9s ✔ Container historyserver Star... 3.8s ✔ Container resourcemanager St... 3.9s ... ``` *** **Access the Cluster** 1. Can login into any node by specifying the container. ```bash docker exec -it datanode /bin/bash ``` 2. Navigate to mapped data volume. ```bash cd hadoop/dfs/ ``` *** **Accessing the UI** The Namenode UI can be accessed at: {% embed url="" %} ResourceManager UI can be accessed at: {% embed url="" %} History Server UI can be accessed at: {% embed url="" %} *** **Shutdown Cluster** To shut down the cluster. ```bash docker-compose down ``` {% hint style="info" %} Time to check we can run some Hadoop Jobs. So we're going to run a Job that counts the number of instances a word appears in the Canterbury Tales. {% endhint %} **Test - Word Count Algorithm** 1. List all the files in our HDFS system. ```bash hdfs dfs -l / ``` 2. Create a /user/root/ file. ```bash hdfs dfs -mkdir -p /user/root ``` 3. Verify directory. ``` hdfs dfs -ls /user/ ``` ``` Found 1 items drwxr-xr-x - root supergroup 0 2024-08-10 13:59 /user/root ``` 4. Download the **hadoop-mapreduce-examples-3.2.1-sources.jar** file {% hint style="info" %} We will use a .jar file containing the classes needed to execute MapReduce algorithm. {% endhint %} {% embed url="" %} 5. Save - hadoop-mapreduce-examples-3.2.1-sources.jar to: \~/Hadoop 6. Download & Save text file - [**Canterbury Tales**](https://www.gutenberg.org/cache/epub/2383/pg2383.txt) **or** [**Ulysses**](https://www.gutenberg.org/cache/epub/4300/pg4300.txt) 7. Copy the files into the namenode container. ```bash cd cd ~/Hadoop/assets docker cp hadoop-mapreduce-examples-3.2.1-sources.jar namenode:/tmp docker cp pg2383.txt namenode:/tmp ``` 8. Create the Input folder. ```docker docker exec -it namenode bash hdfs dfs -mkdir /user/root/input ``` 9. Copy over /tmp/pg2383.txt to /user/root/input. ```bash cd cd /tmp hdfs dfs -put pg2383.txt /user/root/input ``` 10 . Run MapReduce ``` hadoop jar hadoop-mapreduce-examples-3.2.1-sources.jar org.apache.hadoop.examples.WordCount input output ``` ``` 2024-08-10 14:10:15,533 INFO client.RMProxy: Connecting to ResourceManager at resourcemanager/172.18.0.6:8032 2024-08-10 14:10:15,702 INFO client.AHSProxy: Connecting to Application History server at historyserver/172.18.0.3:10200 2024-08-10 14:10:15,879 INFO mapreduce.JobResourceUploader: Disabling Erasure Coding for path: /tmp/hadoop-yarn/staging/root/.staging/job_1723287966223_0001 2024-08-10 14:10:15,969 INFO sasl.SaslDataTransferClient: SASL encryption trust check: localHostTrusted = false, remoteHostTrusted = false 2024-08-10 14:10:16,068 INFO input.FileInputFormat: Total input files to process : 1 2024-08-10 14:10:16,088 INFO sasl.SaslDataTransferClient: SASL encryption trust check: localHostTrusted = false, remoteHostTrusted = false 2024-08-10 14:10:16,101 INFO sasl.SaslDataTransferClient: SASL encryption trust check: localHostTrusted = false, remoteHostTrusted = false 2024-08-10 14:10:16,107 INFO mapreduce.JobSubmitter: number of splits:1 2024-08-10 14:10:16,189 INFO sasl.SaslDataTransferClient: SASL encryption trust check: localHostTrusted = false, remoteHostTrusted = false 2024-08-10 14:10:16,200 INFO mapreduce.JobSubmitter: Submitting tokens for job: job_1723287966223_0001 2024-08-10 14:10:16,200 INFO mapreduce.JobSubmitter: Executing with tokens: [] 2024-08-10 14:10:16,345 INFO conf.Configuration: resource-types.xml not found 2024-08-10 14:10:16,346 INFO resource.ResourceUtils: Unable to find 'resource-types.xml'. 2024-08-10 14:10:16,813 INFO impl.YarnClientImpl: Submitted application application_1723287966223_0001 2024-08-10 14:10:16,867 INFO mapreduce.Job: The url to track the job: http://resourcemanager:8088/proxy/application_1723287966223_0001/ 2024-08-10 14:10:16,868 INFO mapreduce.Job: Running job: job_1723287966223_0001 2024-08-10 14:10:23,970 INFO mapreduce.Job: Job job_1723287966223_0001 running in uber mode : false 2024-08-10 14:10:23,971 INFO mapreduce.Job: map 0% reduce 0% 2024-08-10 14:10:30,048 INFO mapreduce.Job: map 100% reduce 0% 2024-08-10 14:10:34,065 INFO mapreduce.Job: map 100% reduce 100% 2024-08-10 14:10:35,074 INFO mapreduce.Job: Job job_1723287966223_0001 completed successfully 2024-08-10 14:10:35,163 INFO mapreduce.Job: Counters: 54 File System Counters FILE: Number of bytes read=187024 FILE: Number of bytes written=832593 FILE: Number of read operations=0 FILE: Number of large read operations=0 FILE: Number of write operations=0 HDFS: Number of bytes read=1692663 HDFS: Number of bytes written=438623 HDFS: Number of read operations=8 HDFS: Number of large read operations=0 HDFS: Number of write operations=2 HDFS: Number of bytes read erasure-coded=0 Job Counters Launched map tasks=1 Launched reduce tasks=1 Rack-local map tasks=1 Total time spent by all maps in occupied slots (ms)=10968 Total time spent by all reduces in occupied slots (ms)=16448 Total time spent by all map tasks (ms)=2742 Total time spent by all reduce tasks (ms)=2056 Total vcore-milliseconds taken by all map tasks=2742 Total vcore-milliseconds taken by all reduce tasks=2056 Total megabyte-milliseconds taken by all map tasks=11231232 Total megabyte-milliseconds taken by all reduce tasks=16842752 Map-Reduce Framework Map input records=36758 Map output records=282822 Map output bytes=2691784 Map output materialized bytes=187016 Input split bytes=112 Combine input records=282822 Combine output records=41330 Reduce input groups=41330 Reduce shuffle bytes=187016 Reduce input records=41330 Reduce output records=41330 Spilled Records=82660 Shuffled Maps =1 Failed Shuffles=0 Merged Map outputs=1 GC time elapsed (ms)=237 CPU time spent (ms)=4180 Physical memory (bytes) snapshot=862277632 Virtual memory (bytes) snapshot=13577064448 Total committed heap usage (bytes)=1277165568 Peak Map Physical memory (bytes)=608587776 Peak Map Virtual memory (bytes)=5115801600 Peak Reduce Physical memory (bytes)=253689856 Peak Reduce Virtual memory (bytes)=8461262848 Shuffle Errors BAD_ID=0 CONNECTION=0 IO_ERROR=0 WRONG_LENGTH=0 WRONG_MAP=0 WRONG_REDUCE=0 File Input Format Counters Bytes Read=1692551 File Output Format Counters Bytes Written=438623 ``` 11. View the output. ```bash hdfs dfs -cat /user/root/output/* ``` ``` ... reserved, 1 reserved. 1 reserves, 1 resided 1 residence, 1 resign 1 resign, 1 resign. 1 resignation, 1 resist 1 resisted; 1 resistence, 1 resolution 4 resolved 8 resolves 1 resolving 2 resort, 3 resort; 1 resounded 1 resources 1 respect 2 respect. 1 respective 3 ... ``` 12. Check the results accessing to the output folder. ```bash hdfs dfs -ls /user/root/output ``` 13. Output the text file. ``` hdfs dfs -cat /user/root/output/part-r-00000 > /tmp/pg2383_wc.txt exit docker cp namenode:/tmp/pg2383_wc.txt ``` {% endtab %} {% tab title="Windows & MacOS " %} 1. Download the Apache-Hadoop prebuilt image from Docker Hub repository: {% hint style="info" %} **Windows** AMD-based chipset (Intel): ```docker docker pull jporeilly/apache-hadoop:amd ``` {% endhint %} {% hint style="info" %} **MacOS** ARM-based (Mac M series): ``` docker pull jporeilly/apache-hadoop:arm ``` {% endhint %} {% hint style="warning" %} These images are about 14GB .. so please be patient ..! {% endhint %}

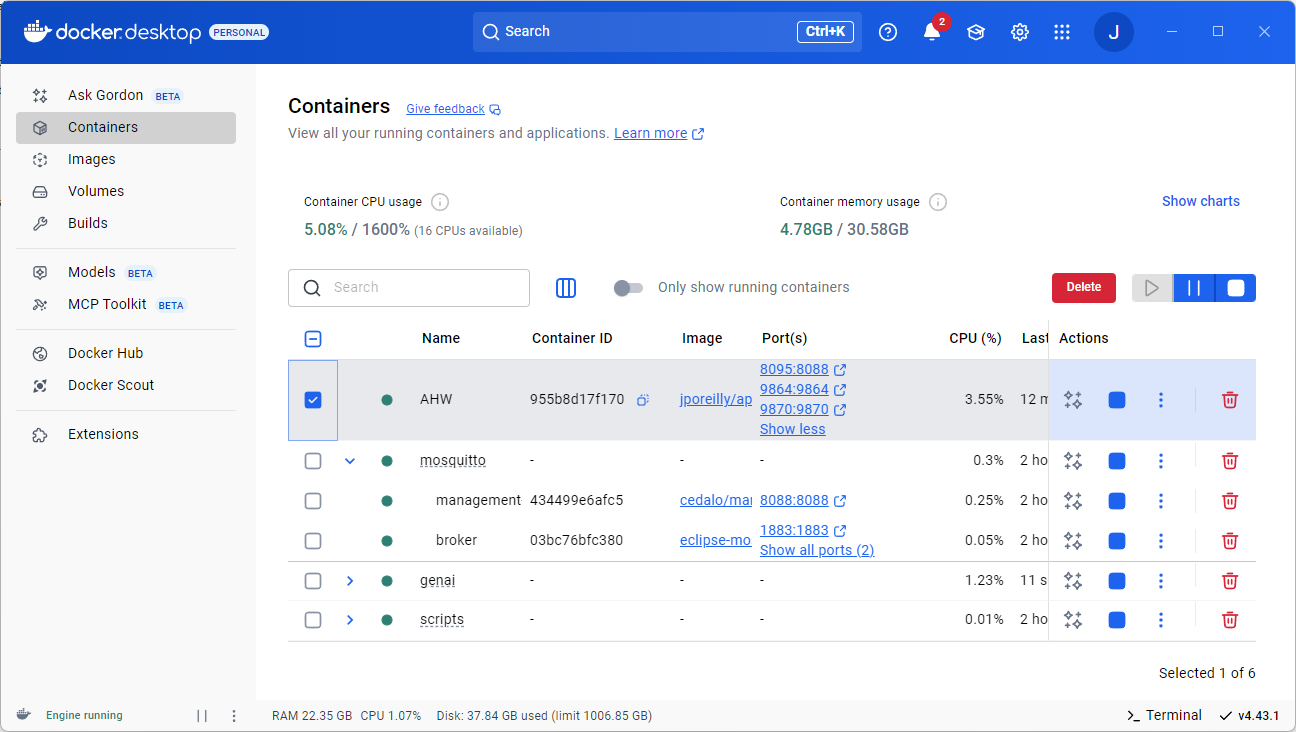

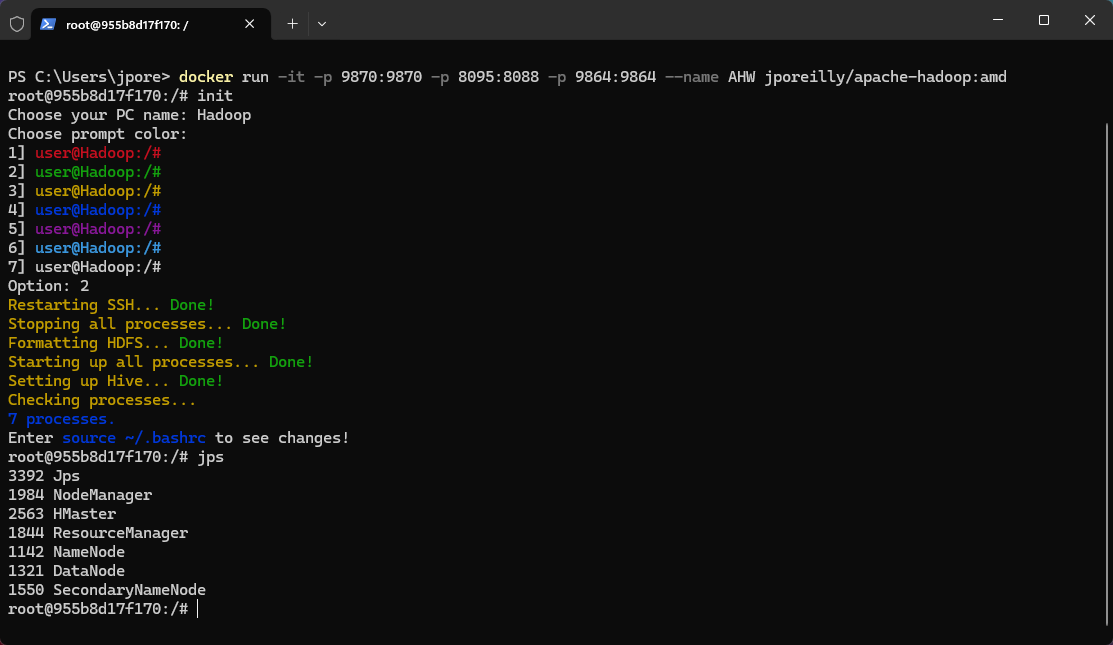

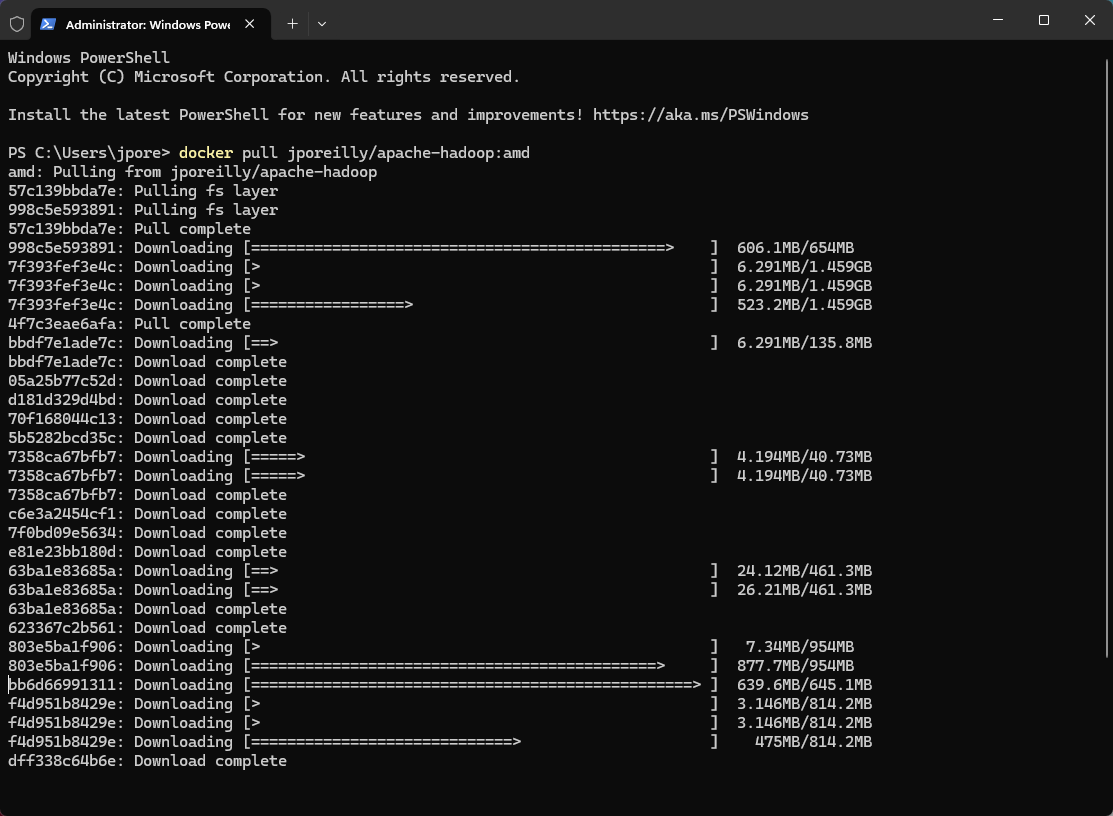

2. Once completed, deploy the Apache-Hadoop containers. ```docker docker run -it -p 9870:9870 -p 8095:8088 -p 9864:9864 --name AHW jporeilly/apache-hadoop:amd ``` {% hint style="danger" %} The YARN Resource Manager port is mapped to: port:8095 to prevent conflict with Cedalo Management Center - MQTT {% endhint %} 3. Once completed a shell will open: ``` root@955b8d17f170:/# ``` 4. Enter: init ``` init ``` {% hint style="warning" %} This stops all running processes, formats the HDFS namenodes, and starts all processes. {% endhint %} 5. Enter: jps ``` jps ```
{% hint style="info" %} Now you can access the Hadoop services at: * **NameNode Web UI**: * **YARN ResourceManager**: [http://localhost:8095](http://localhost:8089) (instead of 8088) * **DataNode Web UI**: {% endhint %} This completes the installation of all tools required for the Big Data course. Just type `exit` to exit from the container - this will stop the container. To start the container enter the following: ```docker docker start -ai AHW ``` Once the Docker shell opens, just type `restart` to restart all processes.
{% tabs %} {% tab title="NameNode" %} {% hint style="info" %} **NameNode** The **NameNode** is the master node and central component of Hadoop's Distributed File System (HDFS). It acts as the "brain" of the file system. {% endhint %} 1. Log into NameNode: {% embed url="" %} 2. You can upload files to the root directory:
{% endtab %} {% tab title="YARN" %} {% hint style="info" %} **YARN** YARN acts as the operating system for Hadoop clusters by separating resource management from job scheduling and monitoring, allowing multiple data processing engines like MapReduce, Spark, Hive, and others to run simultaneously on the same cluster. {% endhint %} 1. Log into YARN: {% embed url="" %}
{% endtab %} {% tab title="DataNode" %} {% hint style="info" %} **DataNode** A DataNode in Hadoop is a worker node in the Hadoop Distributed File System (HDFS) that stores the actual data blocks and serves read/write requests from clients. DataNodes communicate regularly with the NameNode through heartbeat messages to report their health status and the blocks they're storing. They handle data replication by creating multiple copies of blocks across different nodes to ensure fault tolerance, and they perform block verification to detect corruption. DataNodes also participate in data pipeline operations during file writes and coordinate with other DataNodes to maintain data integrity and availability across the distributed cluster. {% endhint %} 1. Log into the DataNode: {% embed url="" %} 2. Useful for troubleshooting the Node.
