RabbitMQ

Allows for messages to be queued, received, and delivered asynchronously ..

RabbitMQ is a popular open-source message broker software that enables complex routing, message queuing, and message distribution. It facilitates a scalable and flexible way for applications to communicate with each other, decoupling producers of messages from consumers.

RabbitMQ supports multiple messaging protocols, most notably AMQP (Advanced Message Queuing Protocol). It is designed to handle high volumes of messages and allows for messages to be queued, received, and delivered asynchronously, improving the performance and reliability of applications.

Installation

One of the main RabbitMQ features is the ability to route messages to specific queues based on a routing key.

In this workshop lets assume we have a house that has a sensor in each room constantly monitoring:

temperature
pressure
humidity

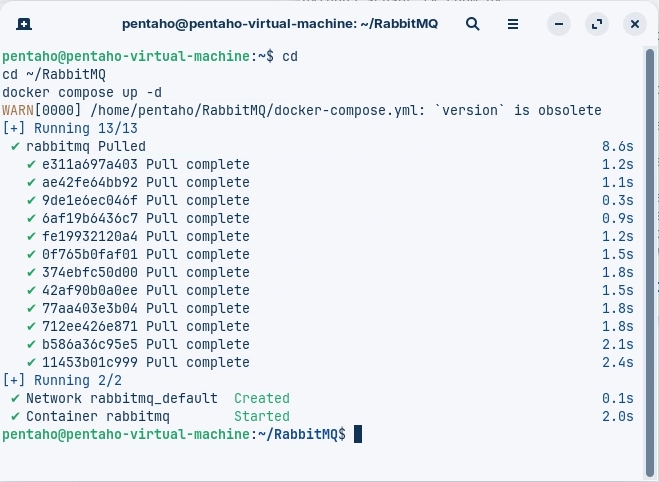

To deploy the 'rabbitmq' container.

cd
cd ~/RabbitMQ
docker compose up -d

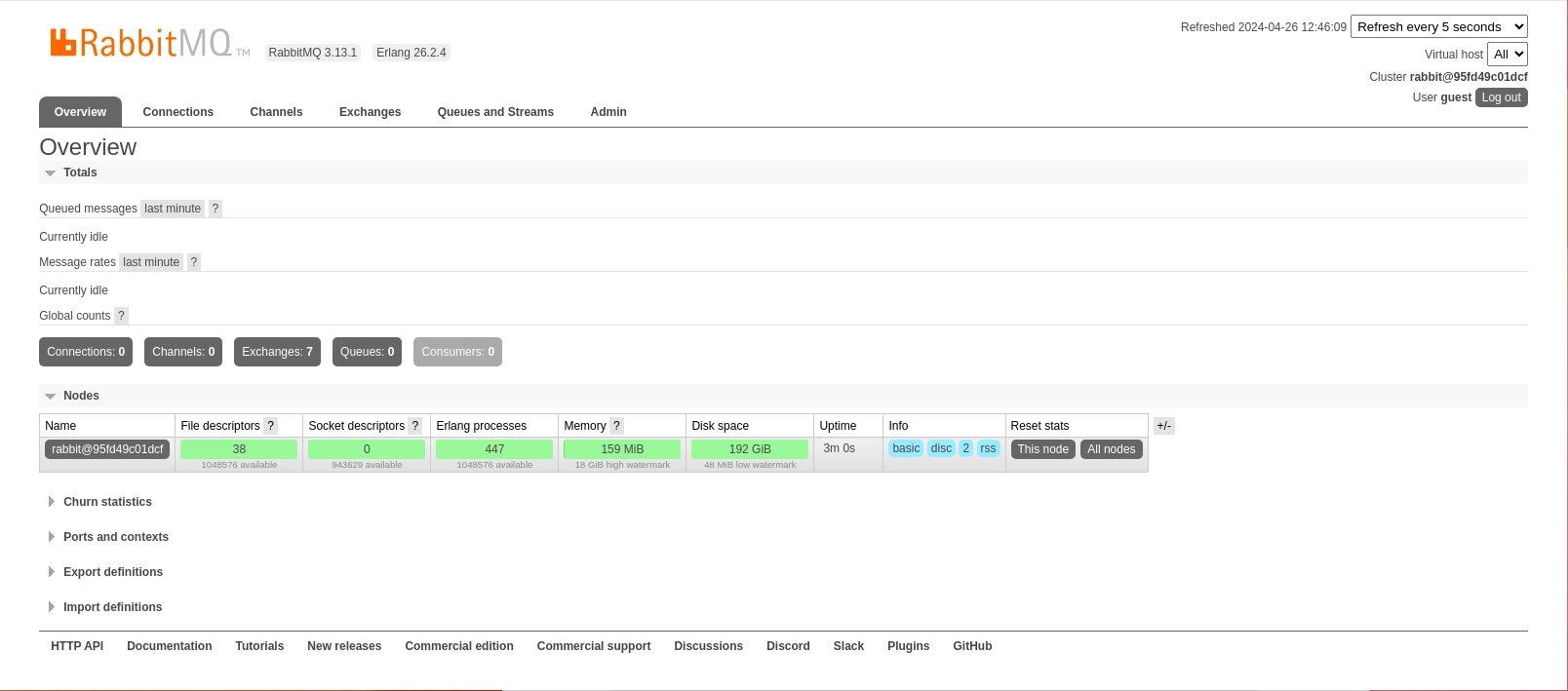

Log into RabbitMQ.

Username

guest

Password

guest

Sensor

Let's publish some sensor data to our RabbitMQ broker.

Take a look at.
~/Workshop--Data-Integration/Labs/Module 3 - Data Sources/Streaming Data/03 RabbitMQ/sensor_tv_room.py

import pika
import random
import time
import json

# RabbitMQ settings
rabbitmq_host = 'localhost'
port = 5672
queue_name = 'tv_room'

# Generate random sensor data
def generate_sensor_data():
    return {
        'temperature': random.uniform(20.0, 100.0),
        'pressure': random.uniform(800.0, 1200.0),
        'humidity': random.uniform(30.0, 80.0)
    }

# Publish sensor data to RabbitMQ
def publish_sensor_data():
    connection = pika.BlockingConnection(pika.ConnectionParameters(host=rabbitmq_host, port=port))
    channel = connection.channel()
    channel.queue_declare(queue=queue_name)

    while True:
        sensor_data = generate_sensor_data()
        message = json.dumps(sensor_data)
        channel.basic_publish(exchange='', routing_key=queue_name, body=message)
        print(f"Sent sensor data: {message}")
        time.sleep(1)

    connection.close()

if __name__ == '__main__':
    publish_sensor_data()

The sensor_tv_room.py script:

loads required libraries
sets RabbitMQ Broker connection details
generates random sensor data
connects to RabbitMQ broker
builds message - data dictionary in JSON format
publish topic + message every 1 second

Execute sensor.py

Ensure you have installed the pika Python AMQP Client Library

Execute sensor_tv_room.py script.

cd
cd ~/Workshop--Data-Integration/Labs/'Module 3 - Data Sources'/'Streaming Data'/'03 RabbitMQ'
python3 sensor_tv_room.py

pentaho@pentaho-virtual-machine:~/Workshop--Data-Integration/Labs/Module 3 - Data Sources/Streaming Data/03 RabbitMQ$ python3 sensor_tv_room.py
Sent sensor data: {"temperature": 85.6651714188232, "pressure": 1016.9116665986137, "humidity": 70.52673568794194}
Sent sensor data: {"temperature": 58.979394104149, "pressure": 970.7208711731189, "humidity": 67.3330124529212}
Sent sensor data: {"temperature": 80.72999233834662, "pressure": 1085.8291135914146, "humidity": 42.93245165447303}
Sent sensor data: {"temperature": 78.77851120347607, "pressure": 930.8217146864357, "humidity": 73.69984450730081}
Sent sensor data: {"temperature": 66.34107198977061, "pressure": 916.521247736472, "humidity": 36.34932167085602}

Check that the sensor data is being successfully published to HiveMQ.

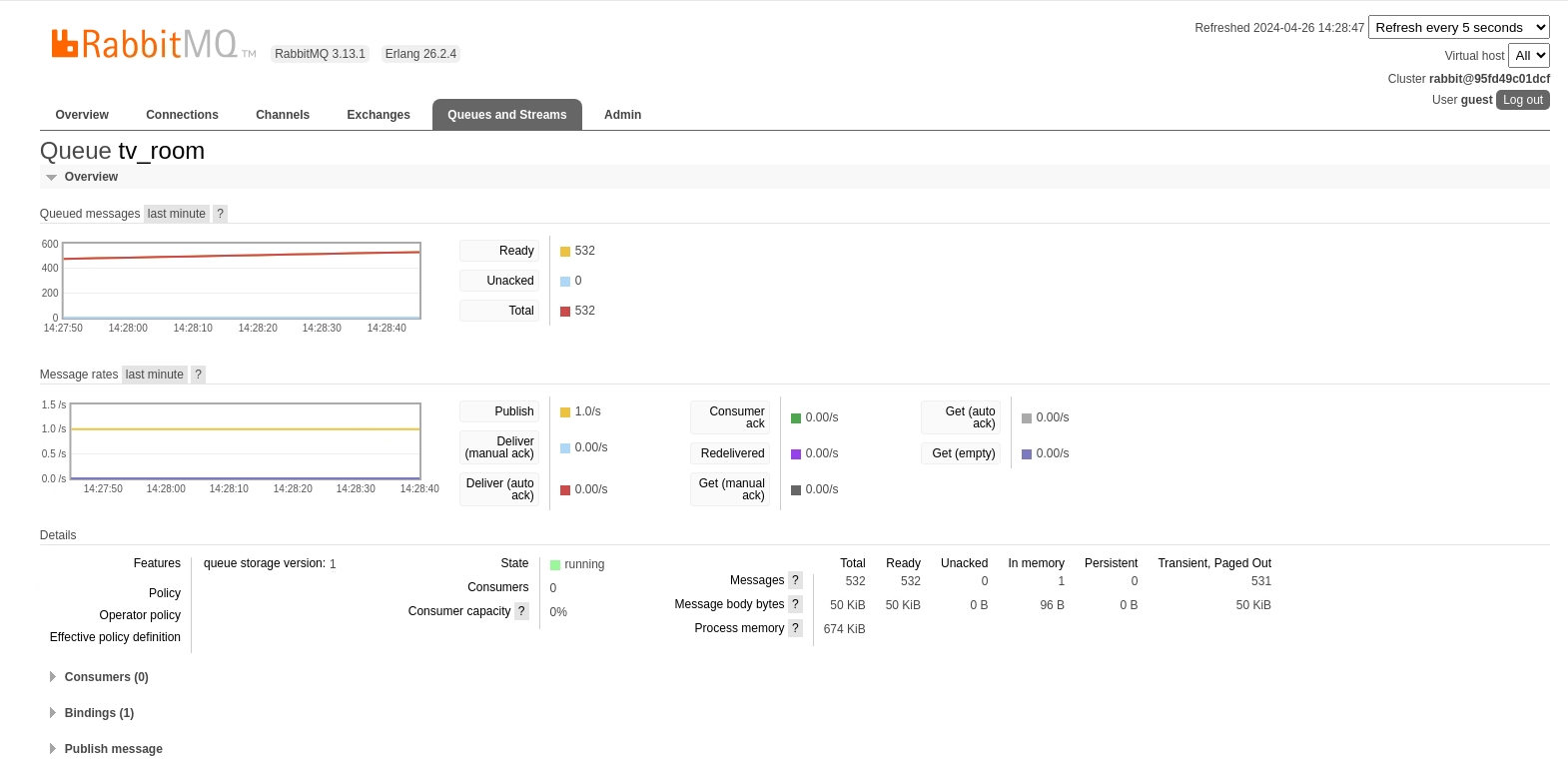

Click on Queues & Streams

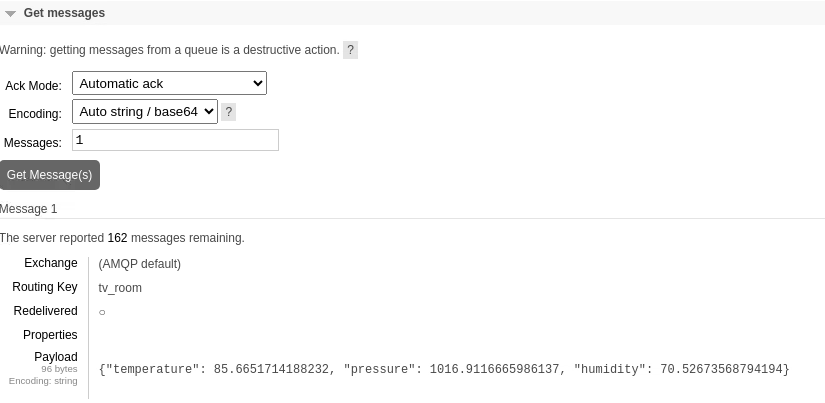

To get a message, ensure the Ack Mode: Automatic ack

Similiar to HiveMQ, lets subscribe to the tv_room topic retained in RabbitMQ and use Pentaho Data Integration to process the data.

Start Pentaho Data Integration:

cd
cd Pentaho/design-tools/data-integration
sh spoon.sh

Again .. let's Publish some sensor data ..

Execute sensor.py script.

cd
cd ~/Workshop--Data-Integration/Labs/'Module 3 - Data Sources'/'Streaming Data'/'03 RabbitMQ'
python3 sensor_tv_room.py

Log into RabbitMQ Control Center.

User

guest

Password

guest

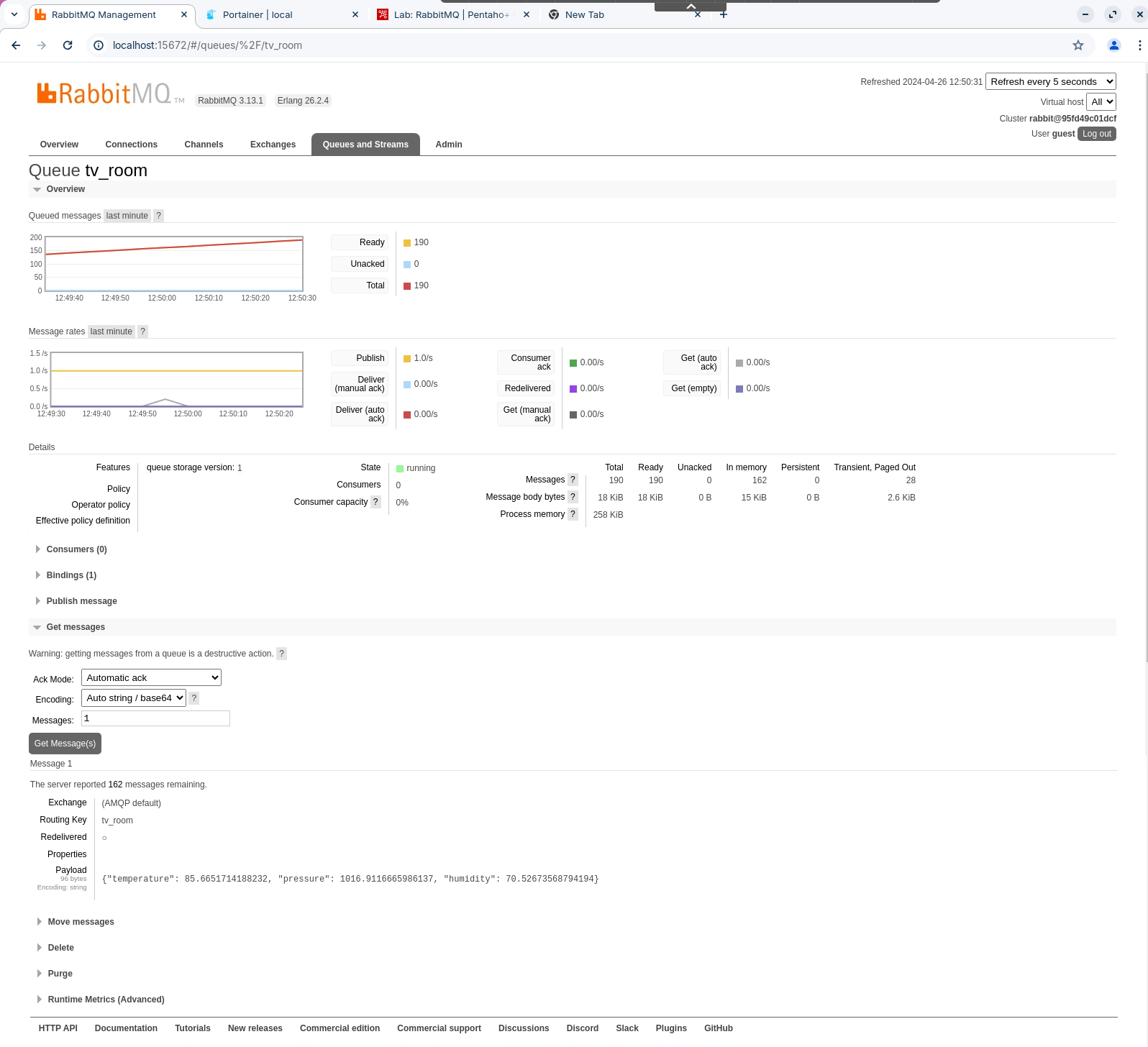

Click on Queues & Streams.

The Advanced Message Queuing Protocol (AMQP) Consumer step receives streaming data from an AMQP message producer through an AMQP 0-9-1 compatible broker. You can configure this step to use an existing AMQP message queue or create a new one.

You can also set up the AMQP Consumer step to continuously ingest streaming data from either an AMQP message or broker to collect messages about monitored events, track user consumption of data streams, or monitor alerts. The parent AMQP Consumer step runs a child (sub-transformation) that executes according to the message batch size or duration, letting you process a continuous stream of records in near real-time.

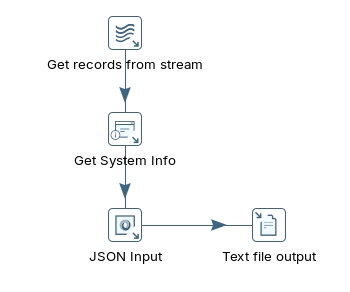

The child transformation must start with the Get records from stream step. Additionally, you can select a step in the child transformation to stream records back to the parent transformation, which passes the records downstream to any other steps included within the same parent transformation.

Open the following transformation:

~/Workshop--Data-Integration/Labs/Module 3 - Data Sources/Streaming Data/03 RabbitMQ/tr_amqp_consumer.ktr

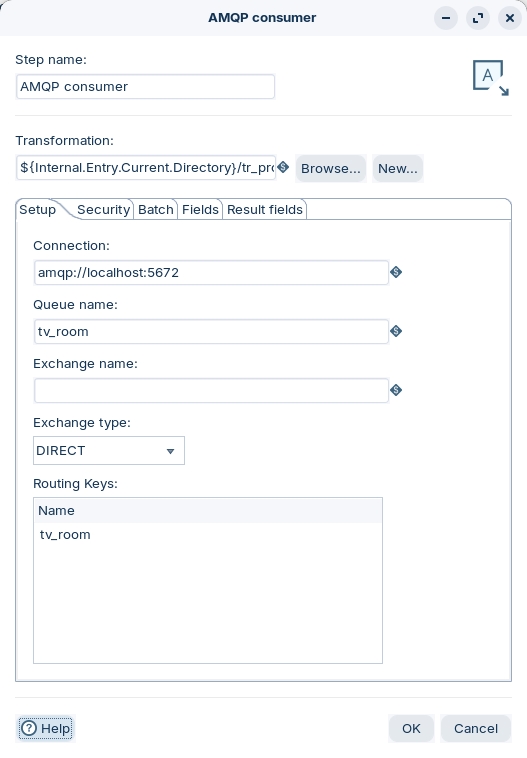

Double click on the AMQP Consumer step.

Setup

The options and settings in the AMQP Consumer Setup tab make it possible for you to create a new AMQP message queue the first time you run the AMQP Consumer step in a transformation. The new AMQP message queue will default to the following properties:

Durable Non auto-delete Non-exclusive When you use the AMQP Consumer to create a new queue, the broker bindings are initialized the first time you run the AMQP Consumer step in a transformation. Once you initialize the bindings, you can then start the AMQP 0-9-1 message producer before running the AMQP Consumer step. As a recommended best practice, always run the AMQP Consumer step first, before you start producing or publishing any messages through the AMQP producer.

Option

Description

Connection

Specify the URI address of the AMQP broker to which this step connects to ingest messages into PDI. For more information see: https://www.rabbitmq.com/uri-spec.html

Queue name

Specify the name of a new AMQP message queue from which this step will ingest messages.

The new queue will be created automatically the first time you run the transformation.

The new queue and its exchange attributes will default to the following properties:

Durable
Non auto-delete
Non-exclusive

Note: If you specify a queue name that already exists on the broker, but the existing queue has parameter settings that differ from these, or if the specified queue has an Exchange type (below) that is different, the transformation will abort.

Exchange name

Specify either a new exchange name or an existing exchange name from which to bind the queue.

If the exchange name does not already exist, it will default to the following properties:

Durable
Non auto-delete

Leave the Exchange name blank to use the DEFAULT as the Exchange type (below) and set the Exchange type to DIRECT. The AMQP Producer step will require a matching blank entry in its Setup tab for the Exchange name.

Routing Keys

When using either DIRECT or TOPIC as the Exchange type, specify the appropriate routing key (or multiple keys) in the Routing Keys table. Routing keys are input as string names.
