# Read XML

{% hint style="warning" %}

#### Workshop - Read XML

Read XML from a file, a URL, or a field value. Use **Get data from XML**.

**What you’ll do**

* Read XML from a local file.
* Read XML from a URL (URI).
* Use **XPath** to select nodes and fields.
* Use **Get Fields** to infer the XML structure.
* Debug a data type mismatch using the logs.

**Prerequisites:** Basic transformations. Basic XML (elements, attributes, hierarchy). PDI installed.

**Estimated time:** 30 minutes
{% endhint %}

{% embed url="<https://www.loom.com/share/85ad9973848041b9b8447ed45cffc09c?hideEmbedTopBar=true&hide_owner=true&hide_share=true&hide_title=true>" %}
Get Data from XML
{% endembed %}

***

{% hint style="info" %}
**Workshop files**

Download these files before you start:

* The sample XML input.
* The starter transformation (optional).
  {% endhint %}

{% file src="/files/cXoi8spmhLLXNFUMxNWt" %}

***

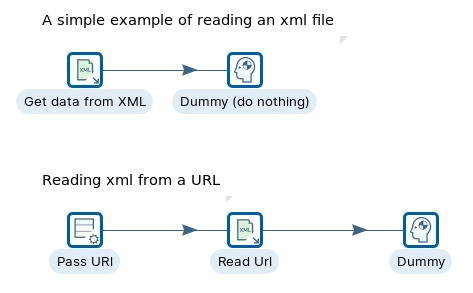

<figure><img src="/files/Df8l3Bg4KIq875nD4ReF" alt="" width="375"><figcaption><p>Read XML</p></figcaption></figure>

{% hint style="info" %}
**Create a new transformation**

Use any of these options to open a new transformation tab:

* Select **File** > **New** > **Transformation**
* Use `Ctrl+N` (Windows/Linux) or `Cmd+N` (macOS)
  {% endhint %}

***

{% tabs %}
{% tab title="1. XML - File" %}
{% hint style="info" %}

#### **XML - File**

In this workflow, an XML **file** is parsed via **XPath** to retrieve the dataset.
{% endhint %}

<figure><img src="/files/Nfy0uxdm87mjDQK7wmbL" alt="" width="375"><figcaption><p>Get data from XML - file</p></figcaption></figure>

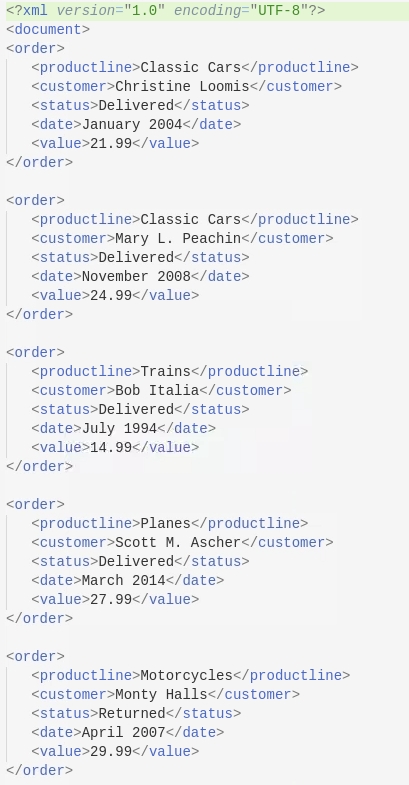

<figure><img src="/files/ep2niXC1hpTfWwHQ9pHu" alt="" width="375"><figcaption><p>orders.xml</p></figcaption></figure>

{% tabs %}
{% tab title="1. Get data from XML" %}
{% hint style="info" %}

#### **Get data from XML**

This step provides the ability to read data from any type of XML file using XPath specifications.
{% endhint %}

1. Start Pentaho Data Integration.

{% hint style="info" %}
{% tabs %}
{% tab title="Windows (PowerShell)" %}

```powershell
Set-Location C:\Pentaho\design-tools\data-integration
.\spoon.bat
```

{% endtab %}

{% tab title="macOS / Linux" %}

```bash
cd ~/Pentaho/design-tools/data-integration
./spoon.sh
```

{% endtab %}
{% endtabs %}
{% endhint %}

2. Drag the ‘Get data from XML’ step onto the canvas.
3. Double-click on the step, and configure the following properties:

<figure><img src="/files/3Rwfg6wwzMnvuF52ohRC" alt=""><figcaption><p>XML - file</p></figcaption></figure>

4. Click on the Content tab, and configure the following properties:

<figure><img src="/files/0jLOQx1ereeA6tCTCoiZ" alt=""><figcaption><p>XPath</p></figcaption></figure>

5. Click on the Fields tab, and then on the ‘Get Fields’ button.

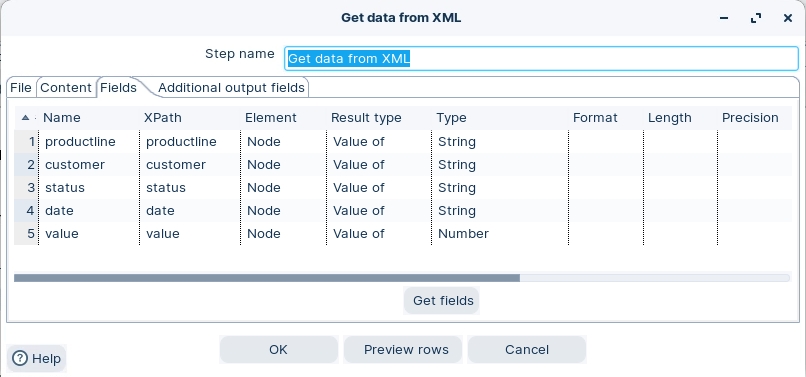

<figure><img src="/files/Z6I0XT7n3TC8bdlswFUa" alt=""><figcaption><p>XML - fields</p></figcaption></figure>

6. Click OK.
   {% endtab %}

{% tab title="2. Dummy" %}
{% hint style="info" %}

#### **Dummy**

The Dummy step does not do anything. Its primary function is to be a placeholder for testing purposes. For example, to have a transformation, you need at least two steps connected to each other.
{% endhint %}

1. Drag a ‘Dummy’ step onto the canvas.
2. Create a hop from the ‘Get data from XML’ step.
3. Close the Step.
   {% endtab %}

{% tab title="3. RUN" %}
{% hint style="info" %}

#### **RUN Transformation**

The workshop illustrates how to ingest an XML data source. The XML can either stream from:

* a previous step (typically a URL)
* a file
* a stream field (XML stored in a field)
  {% endhint %}

{% hint style="warning" %}
Remember to disable the hops on the second workflow.
{% endhint %}

1. Click the Run button in the Canvas Toolbar.
2. Preview the data.

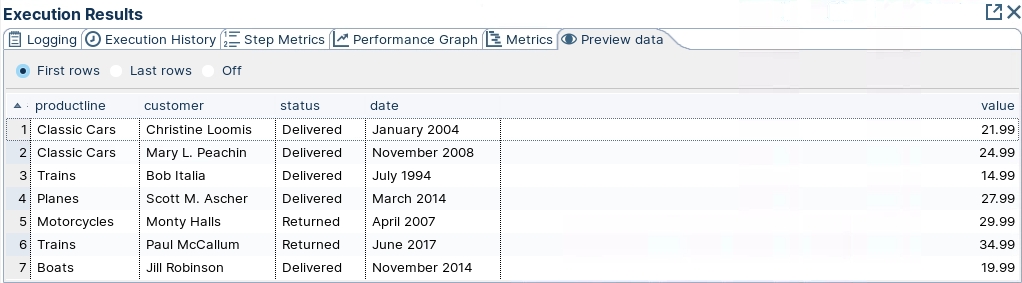

<figure><img src="/files/aiBBvxgp1W4V11uFDJEu" alt=""><figcaption><p>Preview data</p></figcaption></figure>
{% endtab %}
{% endtabs %}
{% endtab %}

{% tab title="2. XML - URI" %}
{% hint style="info" %}
In this workflow, a **URL** to an XML data source is parsed via **XPath** to retrieve the dataset.
{% endhint %}

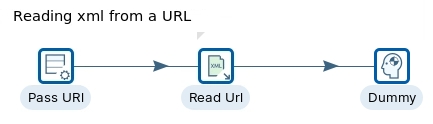

<figure><img src="/files/0hZYvUgGKOiXLX0oLR70" alt="" width="375"><figcaption><p>Get XML - URL</p></figcaption></figure>

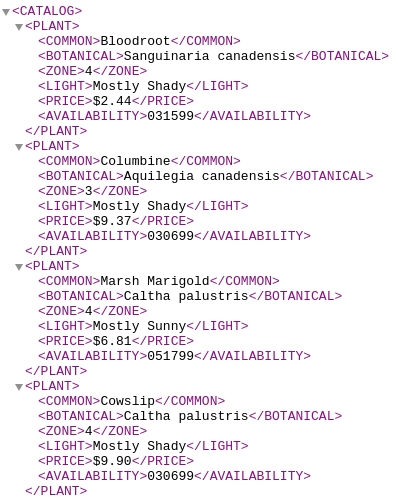

<figure><img src="/files/tSgfm42MAaiGb98J7Uc9" alt="" width="375"><figcaption><p><a href="https://www.w3schools.com/xml/plant_catalog.xml">https://www.w3schools.com/xml/plant_catalog.xml</a></p></figcaption></figure>

{% tabs %}
{% tab title="1. Generate rows - Pass URL" %}
{% hint style="warning" %}
In this workshop, you pass the URL in a data stream field.

Copy the URL to your clipboard. You will paste it into the XPath dialog.
{% endhint %}

{% hint style="info" %}

#### Generate rows

Generate rows outputs a specified number of rows. By default, the rows are empty; however, they can contain several static fields. This step is used primarily for testing purposes. It may be useful for generating a fixed number of rows, for example, you want exactly 12 rows for 12 months.
{% endhint %}

1. Drag the ‘Generate Rows’ step onto the canvas.
2. Double-click on the step, and configure the following properties:

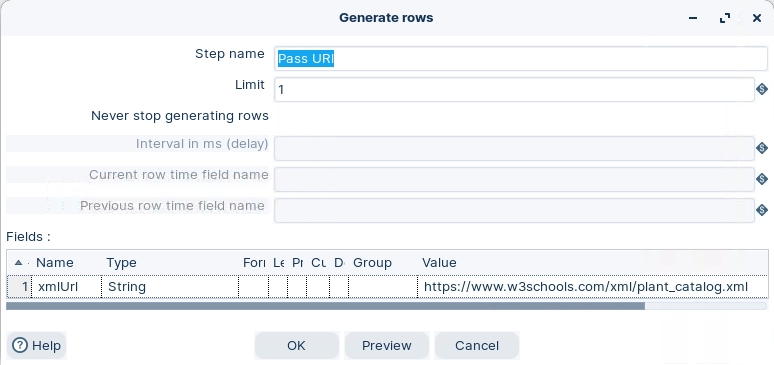

<figure><img src="/files/H5Lp8FsHWG5llczDW4OE" alt=""><figcaption><p>Pass URL in data stream field</p></figcaption></figure>
{% endtab %}

{% tab title="2. Get data from XML - Read URL" %}
{% hint style="info" %}

#### Get data from XML

The dataset is being parsed from a stream field xmlUrl that’s being passed on from the ‘Pass URL’ step.
{% endhint %}

1. Drag the ‘Get Data from XML’ step onto the canvas.
2. Create a hop from the ‘Pass URL’ step.
3. Double-click on the step, and configure the following properties:

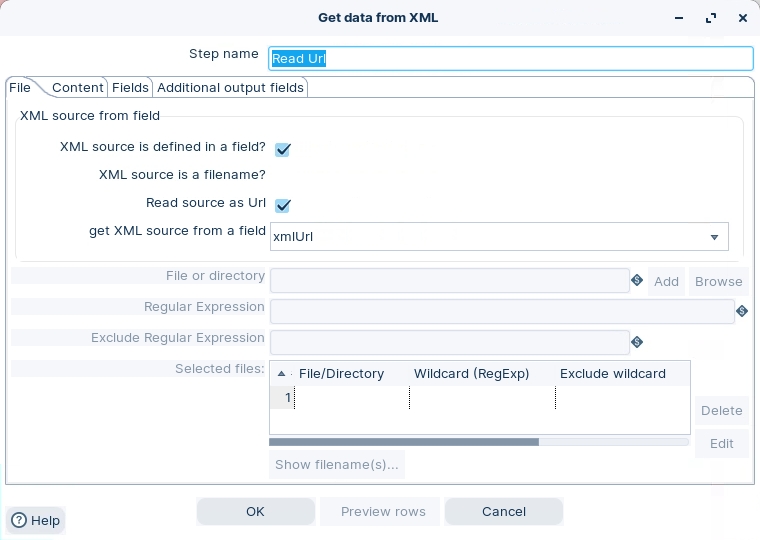

<figure><img src="/files/LGHUpXn7xI4ImE6nWF1U" alt=""><figcaption><p>Read URL</p></figcaption></figure>

4. Click on the ‘Content’ tab and configure the following properties:

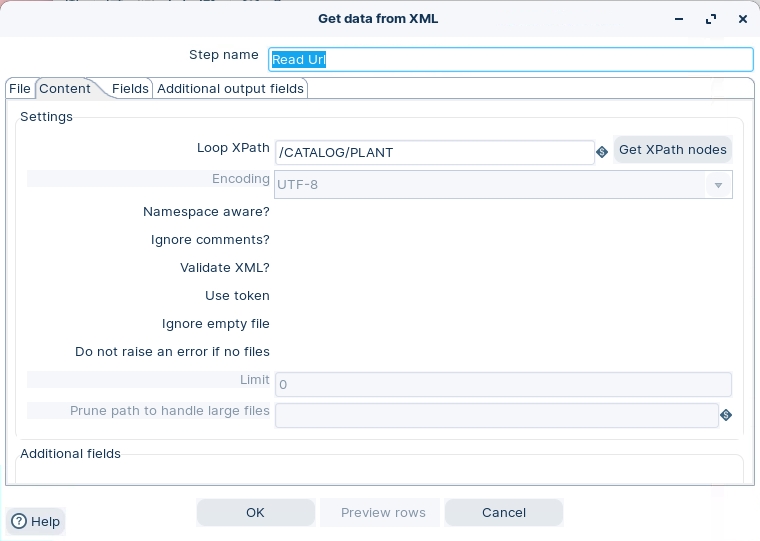

<figure><img src="/files/0iNCbSr2uVEGbBvSLsv9" alt=""><figcaption><p>Select XPath</p></figcaption></figure>

5. Click on the ‘Fields’ tab and configure the following properties:

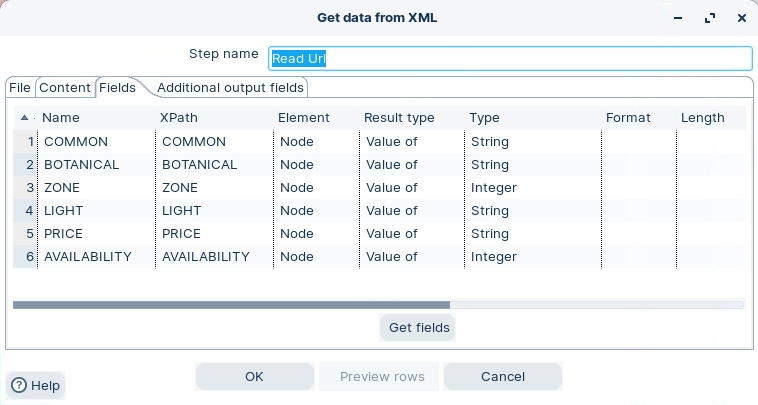

<figure><img src="/files/8zp1sYLVX2VCUUcmsn45" alt=""><figcaption><p>Configure fields</p></figcaption></figure>

6. Click on the ‘Get Fields’ button.

Next: open the **Dummy** tab.
{% endtab %}

{% tab title="3. Dummy" %}
{% hint style="info" %}

#### Dummy

The Dummy step does not do anything. Its primary function is to be a placeholder for testing purposes. For example, to have a transformation, you need at least two steps connected to each other.
{% endhint %}

1. Drag a ‘Dummy’ step onto the canvas.
2. Create a hop from the ‘Get data from XML’ step.
3. Close the Step.
   {% endtab %}

{% tab title="4. RUN" %}
{% hint style="danger" %}

#### **RUN the Transformation**

Remember to enable the hops and disable the hop in Workflow 1: XML - File

The workflow will fail .. do you know why.?
{% endhint %}

1. Click the Run button in the Canvas Toolbar

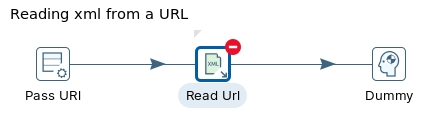

<figure><img src="/files/Wp5yh9CSg71fSu0xsT7l" alt="" width="375"><figcaption><p>Invalid data type</p></figcaption></figure>

2. Check the logs.

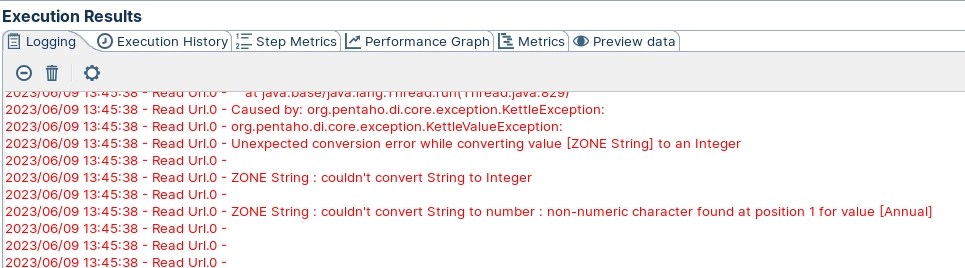

<figure><img src="/files/D4wwKoQlc9jqIXalyIjt" alt=""><figcaption><p>Logs</p></figcaption></figure>

{% hint style="warning" %}
Looks like Zone data type is alphanumeric (string), not integer.
{% endhint %}

3. Change Zone data type to string and re-run transformation.
4. Click on the Dummy step and Preview data.

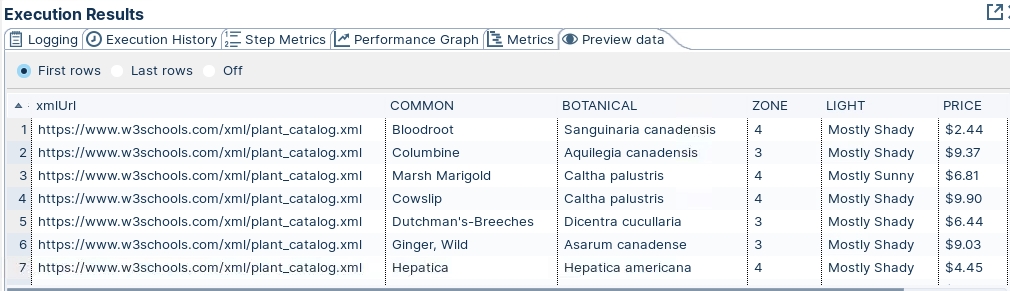

<figure><img src="/files/vK9H1JYDED0g3nTNBHJB" alt=""><figcaption><p>Preview Plant Catalog</p></figcaption></figure>
{% endtab %}
{% endtabs %}
{% endtab %}
{% endtabs %}


---
