# Prepare Environment {% hint style="info" %} #### Prepare Environment You will need perform the following steps to prepare your Linux environment for an Archive installation of the Pentaho Server. This process includes: * create a 'Pentaho installation user' with sudo privileges. * install supported version of OpenJDK 11 * set PENTAHO\_JAVA\_HOME * install certified version of Postgres 15 * create 'superadmin' user * install pgAdmin4 {% endhint %} {% hint style="warning" %} The supported Linux environment for Pentaho version 10.2.x: Ubuntu 22.04 Check [Components Reference](https://docs.pentaho.com/pdia-10.2-install/components-reference) {% endhint %} {% tabs %} {% tab title="1. Creating a Pentaho User" %} {% hint style="info" %} #### Pentaho Installation Account Add an account that is assigned administrative privileges by performing the following steps. We'll be using this account to complete the deployment. {% endhint %} {% hint style="danger" %} For production environments its best practice to create a specific 'installation user' account with the required role / permissions / privileges. {% endhint %} 1. Run update & upgrade (optional). ```bash sudo apt update -y && sudo apt upgrade -y ``` 2. Add new user to system. ```bash sudo adduser pentaho ``` 3. Set password. ``` New password: password Retype new password: password passwd: password updated successfully ``` ``` Follow the prompts to set the new user’s information. It is fine to accept the defaults to leave all this information blank: ``` 4. Add new user to sudo group. ```bash sudo usermod -aG sudo pentaho ``` 5. Test access. ```bash su - pentaho ``` ```bash sudo ls -la /root ``` {% endtab %} {% tab title="2. Open JDK & JRE 17" %} {% hint style="info" %} #### Java Check the components reference ..!! Pentaho 10.2 is certified on: Oracle OpenJDK & JRE 11 & 17 {% endhint %} {% embed url="" %} 1. Run update & upgrade. ```bash sudo apt update -y && sudo apt upgrade -y ``` 2. Check whether Java is already installed in our system. ```bash java -version ```

Java versions

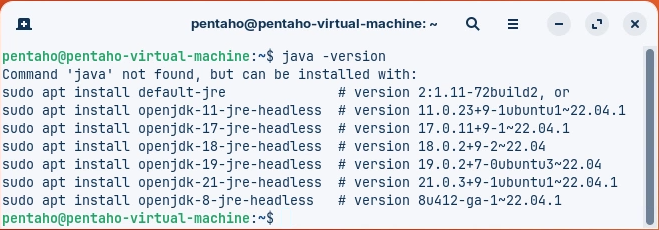

3. Install openjdk 11. ```bash sudo apt install openjdk-17-jdk && sudo apt install openjdk-17-jre-headless ``` 4. Check Java version. ```bash java -version ``` ``` openjdk 17.0.12 2024-07-16 OpenJDK Runtime Environment (build 17.0.12+7-Ubuntu-1ubuntu222.04) OpenJDK 64-Bit Server VM (build 17.0.12+7-Ubuntu-1ubuntu222.04, mixed mode, sharing) ``` 4. Tidy up. ```bash sudo apt autoremove ``` *** {% hint style="info" %} #### Set Java Version You can have multiple Java installations on one server. You can configure which version is the default for use on the command line by using the update-alternatives command. {% endhint %} 1. Run the following command to set the preferred Java version. ```bash sudo update-alternatives --config java ``` ``` There is only one alternative in link group java (providing /usr/bin/java): /usr/lib/jvm/java-17-openjdk-amd64/bin/java Nothing to configure. ``` {% endtab %} {% tab title="3. PENTAHO\_JAVA\_HOME" %} {% hint style="info" %} #### Set PENTAHO\_JAVA\_HOME Perform the following steps to set the PENTAHO\_JAVA\_HOME environment variable. This will ensure that if there are multiple versions of Java the correct version is associated with PENTAHO\_JAVA\_HOME. {% endhint %} 1. Run update & upgrade. ```bash sudo apt update -y && sudo apt upgrade -y ``` 2. Verify java version. ```bash java -version ``` 3. Determine path to OpenJDK. ```bash update-alternatives --list java ``` *** {% hint style="info" %} #### Set PENTAHO\_JAVA\_HOME - Global As Pentaho is being installed under root to /opt/ then set PENTAHO\_JAVA\_HOME for all users. {% endhint %} 1. Edit /etc/environment. ```bash sudo nano /etc/environment ``` 2. Add the following. ```bash # set PENTAHO_JAVA_HOME PENTAHO_JAVA_HOME=/usr/lib/jvm/java-17-openjdk-amd64 ``` 3. Save. ```bash CTRL + o Enter CTRL + x ``` 4. Check path. ```bash echo $PENTAHO_JAVA_HOME ``` 5. Restart the server. ``` reboot ``` *** {% hint style="info" %} #### Set PENTAHO\_JAVA\_HOME - Local For just the specific user. {% endhint %} 1. Set the path to OpenJDK. ```bash sudo nano .bashrc ``` 2. Add the following to the bottom. ``` # set PENTAHO_JAVA_HOME export PENTAHO_JAVA_HOME=/usr/lib/jvm/java-17-openjdk-amd64 ``` 3. Save. ```bash CTRL + o Enter CTRL + x ``` 4. Reload .bashrc. ```bash . ~/.bashrc ``` 5. Check path. ```bash echo $PENTAHO_JAVA_HOME ``` 6. Restart the server. ``` reboot ``` {% endtab %} {% tab title="4. PostgreSQL 14 & 15" %} {% hint style="info" %} #### Pentaho Repository The following databases are supported types as your Pentaho Repository 10.2. {% endhint %}
CertifiedSupported
PostgreSQL 15PostgreSQL 14 & 15
MySQL 8.026MySQL 8.026
Oracle 23cOracle 19c & 23c (including patched versions)
MS SQL Server 2019Microsoft SQL Server 2017 & 2019 (including patched versions)
Maria DB 11.1.2Maria DB 11.1.2
{% tabs %} {% tab title="4.1 Supported Version" %} {% hint style="info" %} #### Supported Pentaho Database - PostgreSQL Ensure you have a 'clean' PostgeSQL environment to avoid any potential conflicts - usually port. {% endhint %} 1. Run update & upgrade. ```bash sudo apt update -y && sudo apt upgrade -y ``` 2. Check Postgresql version. ```bash apt show postgresql -a ``` ``` Package: postgresql Version: 14+238 Priority: optional Section: database Source: postgresql-common (238) Origin: Ubuntu ``` *** {% hint style="warning" %} If PostgreSQL is installed, check its a supported version: PDI v10.2 == Postgres 14 & 15 {% endhint %} 1. If not purge current Postgresql instance. {% hint style="warning" %} Execute each command separately .. sudo apt autoremove to tidy up .. {% endhint %} ```bash sudo apt-get --purge remove postgresql sudo apt-get purge postgresql* sudo apt-get --purge remove postgresql postgresql-doc postgresql-common ``` 2. Check for packages. ```bash dpkg -l |grep postgres;PostgreSQL ``` {% endtab %} {% tab title="4.2 Install PostgreSQL 14 & 15" %} {% hint style="info" %} #### Install PostgreSQL 14 PostgreSQL 14 is a default in the Unbuntu 22.04 apt repository. {% endhint %} 1. Update Repository list. ```bash sudo apt update -y && sudo apt upgrade -y ``` 2. Install PostgreSQL 14. ```bash sudo apt-get -y install postgresql-14 ``` ``` Reading package lists... Done Building dependency tree... Done Reading state information... Done The following additional packages will be installed: libcommon-sense-perl libjson-perl libjson-xs-perl libllvm14 libpq5 libtypes-serialiser-perl postgresql-client-14 postgresql-client-common postgresql-common sysstat Suggested packages: postgresql-doc-14 isag The following NEW packages will be installed libcommon-sense-perl libjson-perl libjson-xs-perl libllvm14 libpq5 libtypes-serialiser-perl postgresql-14 postgresql-client-14 postgresql-client-common postgresql-common sysstat 0 to upgrade, 11 to newly install, 0 to remove and 0 not to upgrade. Need to get 42.4 MB of archives. ... ``` 3. Check the PostgreSQL version. ```bash psql --version ``` ``` psql (PostgreSQL) 14.12 (Ubuntu 14.12-0ubuntu0.22.04.1) ``` *** {% hint style="info" %} #### PostgreSQL 15 - Add APT Repository If you decide to go the PostgreSQL 15, the package is not available in the default package repository, so needs to be added to the official package repository using following commands. {% endhint %} 1. Add APT Repository. ```bash sudo sh -c 'echo "deb http://apt.postgresql.org/pub/repos/apt $(lsb_release -cs)-pgdg main" > /etc/apt/sources.list.d/pgdg.list' ``` 2. Import GPG key. ```bash wget -qO- https://www.postgresql.org/media/keys/ACCC4CF8.asc | sudo tee /etc/apt/trusted.gpg.d/pgdg.asc &>/dev/null ``` 3. Update Repository list. ```bash sudo apt update -y && sudo apt upgrade -y ``` 4. Reboot server. ```bash reboot ``` *** {% hint style="info" %} #### Install PostgreSQL 15 Once package repository is updated, then .. {% endhint %} 1. Install postgresql 15. ```bash sudo apt install postgresql-client-15 postgresql-15 ``` ``` Reading package lists... Done Building dependency tree... Done Reading state information... Done The following additional packages will be installed: libcommon-sense-perl libjson-perl libjson-xs-perl libpq5 libtypes-serialiser-perl postgresql-client-common postgresql-common sysstat Suggested packages: postgresql-doc-15 isag The following NEW packages will be installed libcommon-sense-perl libjson-perl libjson-xs-perl libpq5 libtypes-serialiser-perl postgresql-15 postgresql-client-15 postgresql-client-common postgresql-common sysstat 0 to upgrade, 10 to newly install, 0 to remove and 0 not to upgrade. Need to get 20.0 MB of archives. After this operation, 66.6 MB of additional disk space will be used. Do you want to continue? [Y/n] y ... ``` 2. Check postgresql 15 status. ```bash sudo systemctl status postgresql ``` ``` pentaho@pentaho:~$ sudo systemctl status postgresql ● postgresql.service - PostgreSQL RDBMS Loaded: loaded (/lib/systemd/system/postgresql.service; enabled; vendor pr> Active: active (exited) since Fri 2024-08-16 00:38:15 BST; 2min 27s ago Main PID: 5687 (code=exited, status=0/SUCCESS) CPU: 1ms Aug 16 00:38:15 pentaho systemd[1]: Starting PostgreSQL RDBMS... Aug 16 00:38:15 pentaho systemd[1]: Finished PostgreSQL RDBMS. ``` ``` sudo service postgresql stop // Stop the service sudo service postgresql start // Start the service sudo service postgresql restart // Stop and restart the service sudo service postgresql reload // Reload the configuration without stopping the service ``` 3. Check the PostgreSQL version. ```bash psql --version ``` 4. Tidy up installation. ```bash sudo apt autoremove ``` {% endtab %} {% tab title="4.3 Superuser" %} {% hint style="info" %} #### Grant privileges to a SuperUser During installation, a 'postgres' user is created automatically. This user has full **superadmin** access to your entire PostgreSQL instance. Before you switch to this account, your logged in system user should have sudo privileges. {% endhint %} 1. Log in as 'postgres' user. ```bash sudo su -l postgres ``` 2. Change password. ```plsql psql -c "ALTER USER postgres WITH PASSWORD 'Welcome123'"; ``` 3. Exit ``` CTRL + d ``` *** {% hint style="info" %} #### Pentaho Superuser Grant access & privileges to Pentaho superuser. {% endhint %} 1. Switch to 'postgres' user. ```bash sudo -u postgres psql ``` 2. Create 'pentaho' user. ```bash CREATE USER pentaho WITH PASSWORD 'Welcome123'; ``` 3. Upgrade 'pentaho' to superuser. ```bash ALTER USER pentaho WITH SUPERUSER; ``` 4. Exit. ``` CTRL + d ``` 5. Switch to 'pentaho' user: ```bash sudo -u pentaho psql postgres ``` 6. Check connection details. ```bash \conninfo ``` ``` postgres=# \conninfo You are connected to database "postgres" as user "pentaho" via socket in "/var/run/postgresql" at port "5432". ``` 7. Exit. ```bash CTRL + d ``` *** {% hint style="info" %} #### Allow Remote Connections For reference only as connecting to Postgresql via localhost By default, PostgreSQL accepts connections from the localhost only. However, we can easily modify the configuration to allow connection from remote clients. PostgreSQL reads its configuration from the postgresql.conf file which is located: /etc/postgresql/\/main/ directory {% endhint %} 1. Edit the postgresql.conf file. ```bash cd cd /etc/postgresql/15/main/ sudo nano postgresql.conf ``` 2. Uncomment the line that starts with the listen\_addresses, and replace ‘localhost’ with ‘\*’. {% hint style="info" %} Alternatively, you can specify a specific IP address or a range of IP addresses that are allowed to connect to the server. {% endhint %} 3. Modify the pg\_hba.conf file. ```bash sudo nano /etc/postgresql/15/main/pg_hba.conf ``` 4. Locate the following section and modify ``` # IPv4 local connections: host all all 127.0.0.1/32 md5 ``` ``` # IPv4 local connections: host all all 0.0.0.0/0 md5 ``` 5. Allow port 5432 through the firewall. ```bash sudo ufw allow 5432/tcp ``` 6. Restart Postgres. ```bash sudo service postgresql restart ``` {% endtab %} {% tab title="4.4 pgAdmin" %} {% hint style="info" %} #### pgAdmin4 Desktop The **pgadmin4** package contains both: • **pgadmin4-desktop** – Provides desktop application for Ubuntu system. • **pgadmin4-web** – Provides the web interface accessible in a web browser {% endhint %} 1. Update Repository list. ```bash sudo apt update -y && sudo apt upgrade -y ``` 2. Install Public Key. ```bash curl -fsS https://www.pgadmin.org/static/packages_pgadmin_org.pub | sudo gpg --dearmor -o /usr/share/keyrings/packages-pgadmin-org.gpg ``` 3. Create Repository config file. ```bash sudo sh -c 'echo "deb [signed-by=/usr/share/keyrings/packages-pgadmin-org.gpg] https://ftp.postgresql.org/pub/pgadmin/pgadmin4/apt/$(lsb_release -cs) pgadmin4 main" > /etc/apt/sources.list.d/pgadmin4.list && apt update' ``` 4. Install pgAdmin4 for both desktop - see below for Web version. ```bash sudo apt install pgadmin4-desktop ``` 5. Check contents APT Repository. ```bash cat /etc/apt/sources.list.d/pgadmin4.list ``` *** {% hint style="info" %} #### Pentaho Server Group In pgAdmin, a server group is a way to organize and categorize your PostgreSQL server connections. It's essentially a logical grouping mechanism that helps you manage multiple database server connections more efficiently. {% endhint %} 1. Click on: 'Add New Server'.

create server group

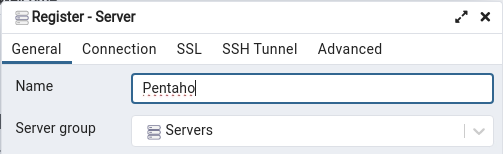

2. Enter: Pentaho for server name.

server group

3. Click on 'Connection'.

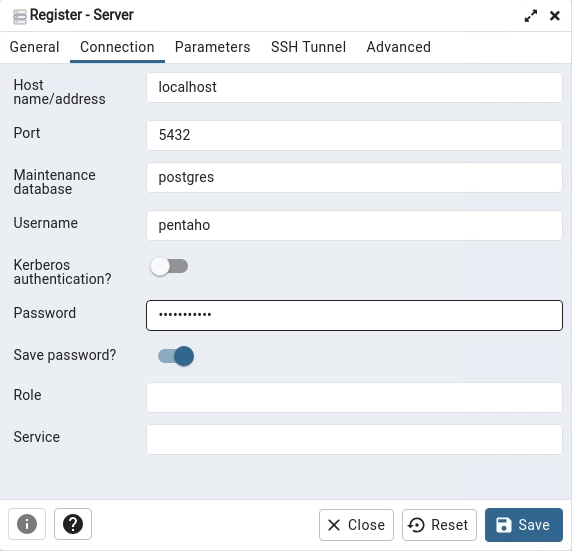

Connection details

``` Welcome123 ``` {% hint style="danger" %} Don't save the password in Production environments. {% endhint %} 4. Save.

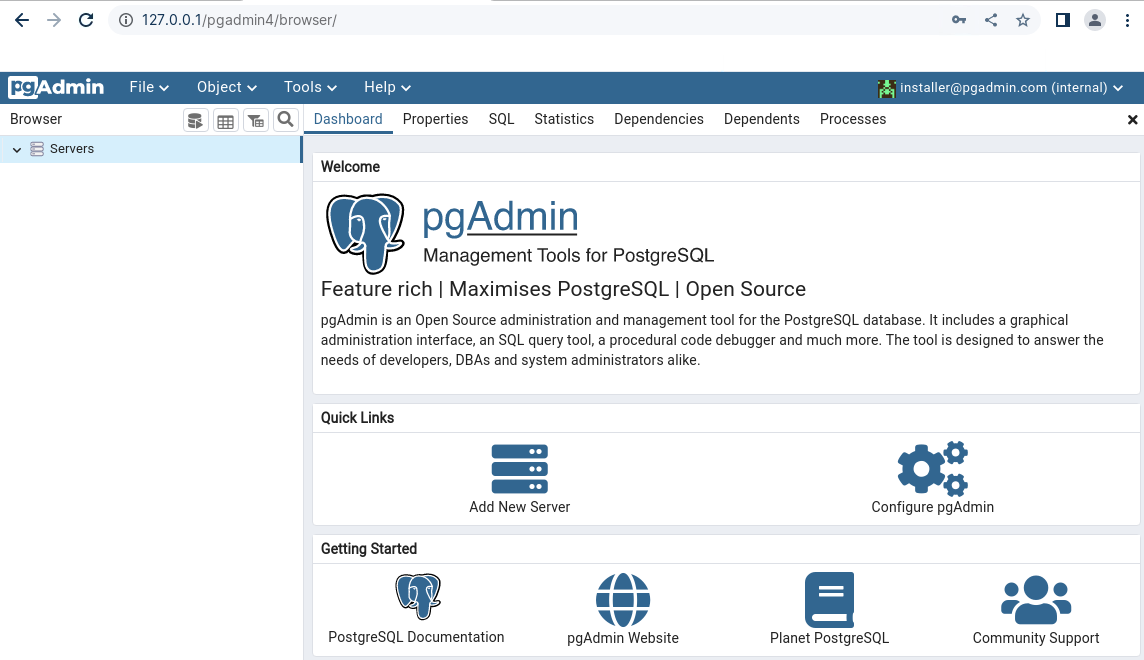

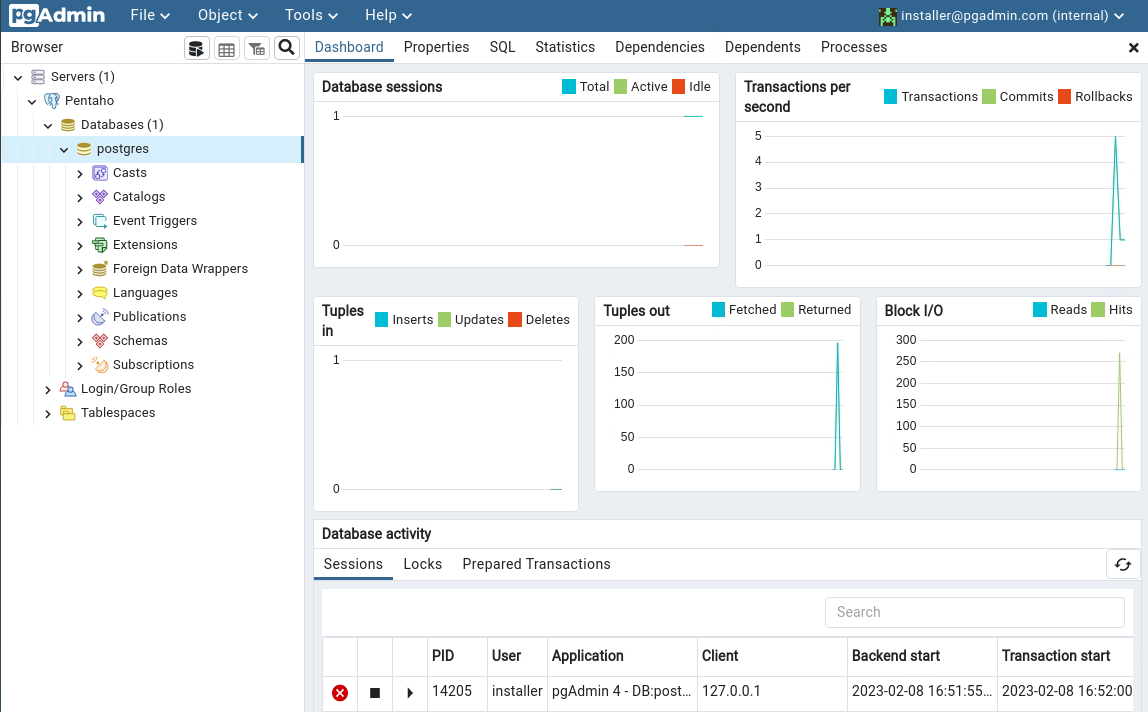

pgAdmin4 UI
